Description

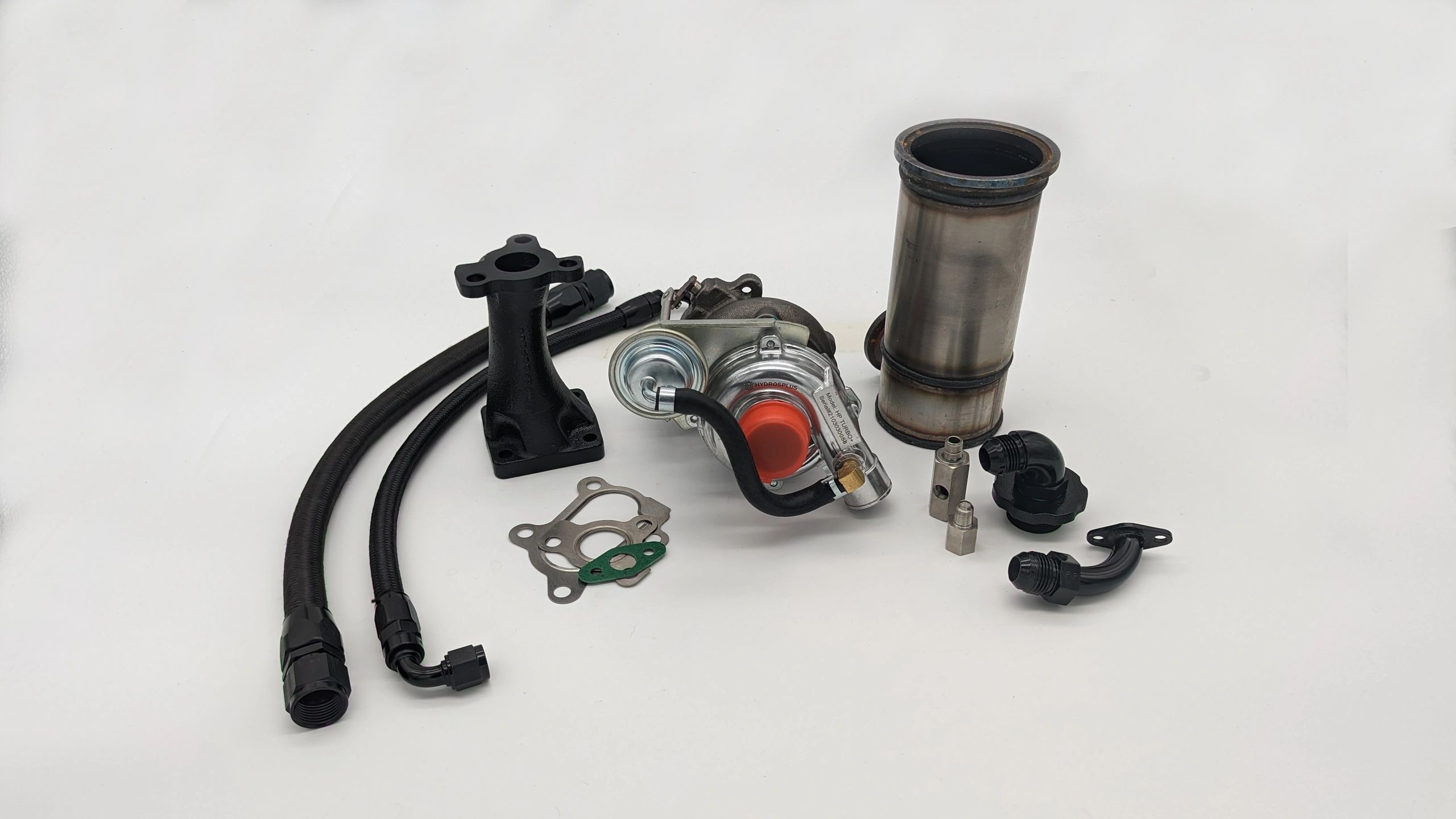

Here’s what comes in the kit:
Turbocharger Assembly
1.1 Turbocharger w/ 5-15psi waste gate
1.2 Gasket Kit Exhaust Riser Assembly
2.1 Cast Exhaust Riser
2.2 (3) M10x1.5 20mm
2.3 1/8 NPT Plug3 Exhaust Assembly
3.1 Turbo Flange
3.2 (4) M8x1.25 20mm socket cap screws
3.3 1.5″ v-band clamp
3.4 Top exhaust tube
3.5 3″ v-band clamp
3.6 Euro4 Standard DPF
3.7 1.5″ v-band clamp
3.8 Bottom exhaust tube
3.9 Bypass Test Canister for emergencies or troubleshooting Intake Tube Assembly
4.1 Silicone Intake Tube
4.2 2″ T clamp
4.3 1.5″ T-clamp
4.4-6AN CCV Port Charge Tube Assembly
5.1 Silicone Charge Tube
5.2 1.25″ T clamp
5.3 1.75″ T-clamp Crankcase Ventilation Assembly
6.1 Crankcase Manifold Outlet
6.2 Crankcase Ventilation Hose
6.3 O-Ring Oil Drain Assembly
7.1 Oil Drain Flange – 90 degree sweep with 10AN
7.2 Oil Drain Hose
7.3 10AN 90degree sweep elbow
7.4 Oil Drain Cap Oil Supply Assembly
8.1 Oil pressure sending unit tee
8.2 Oil Flow controller
8.3 Oil feed hose 1/8 NPT male swivel to banjo turbo fitting
